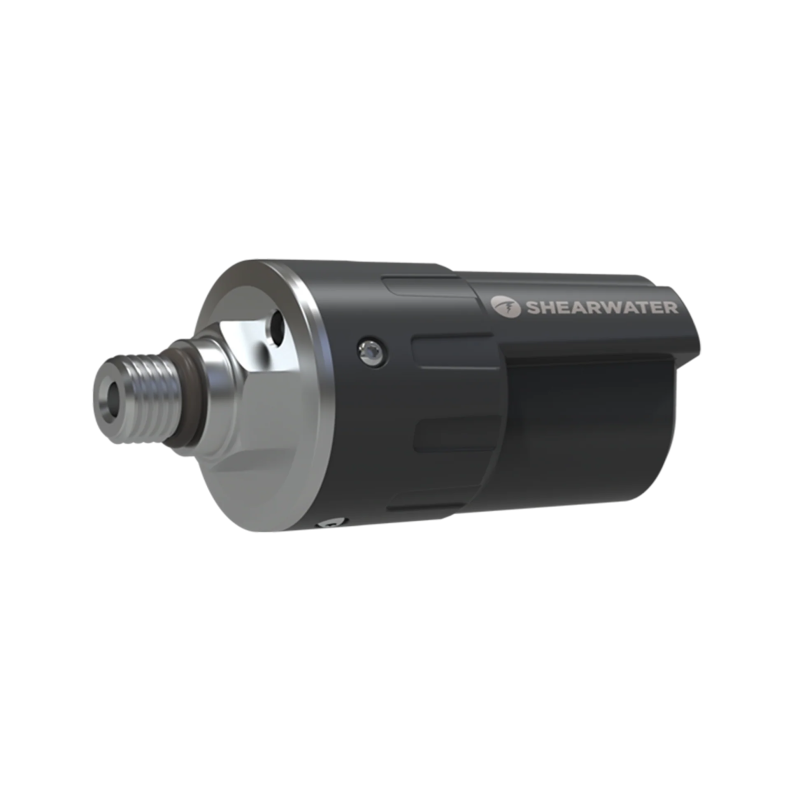

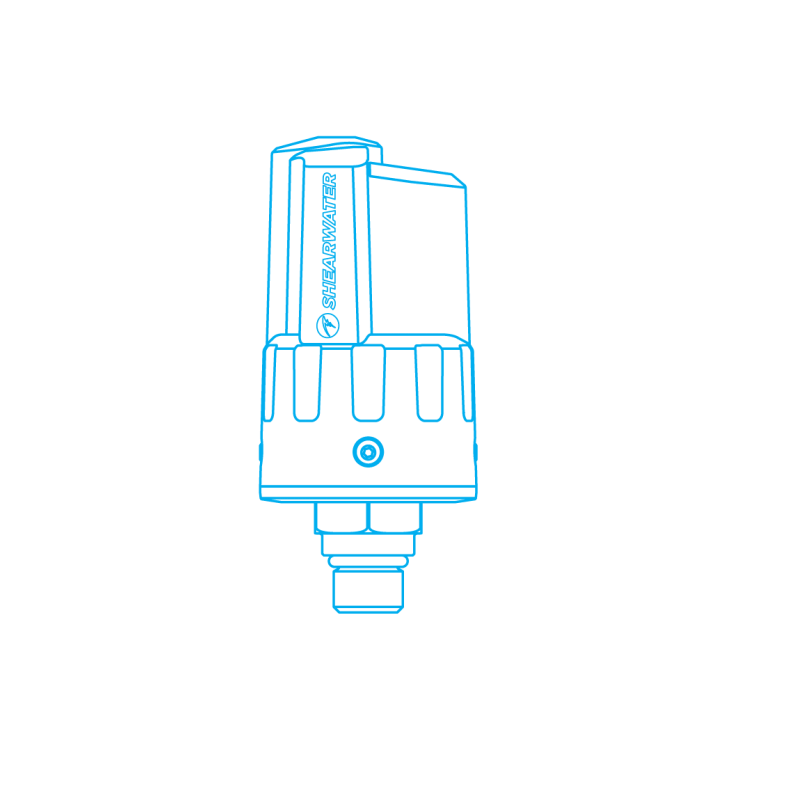

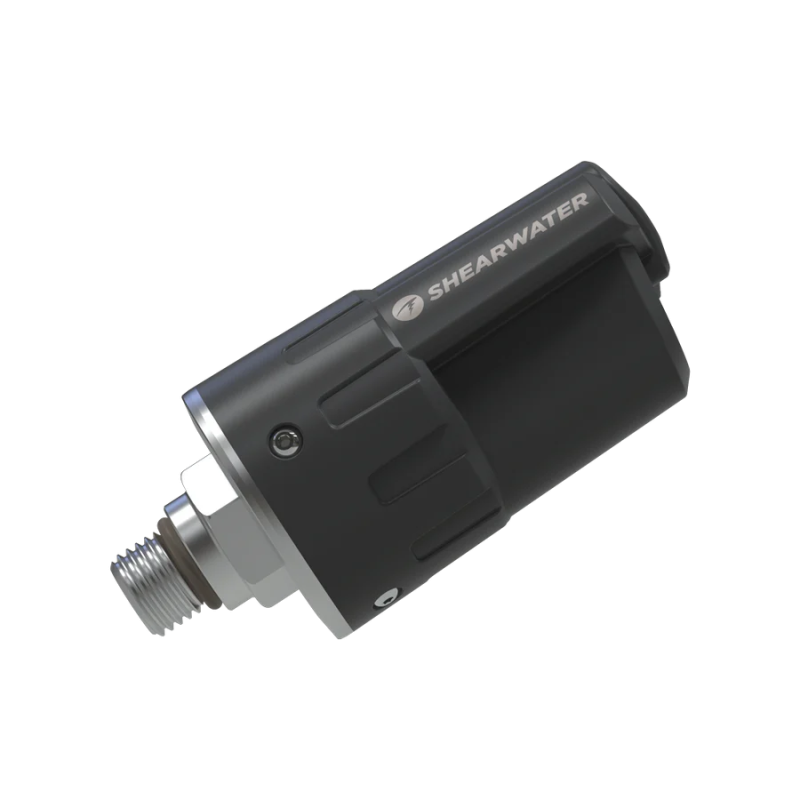

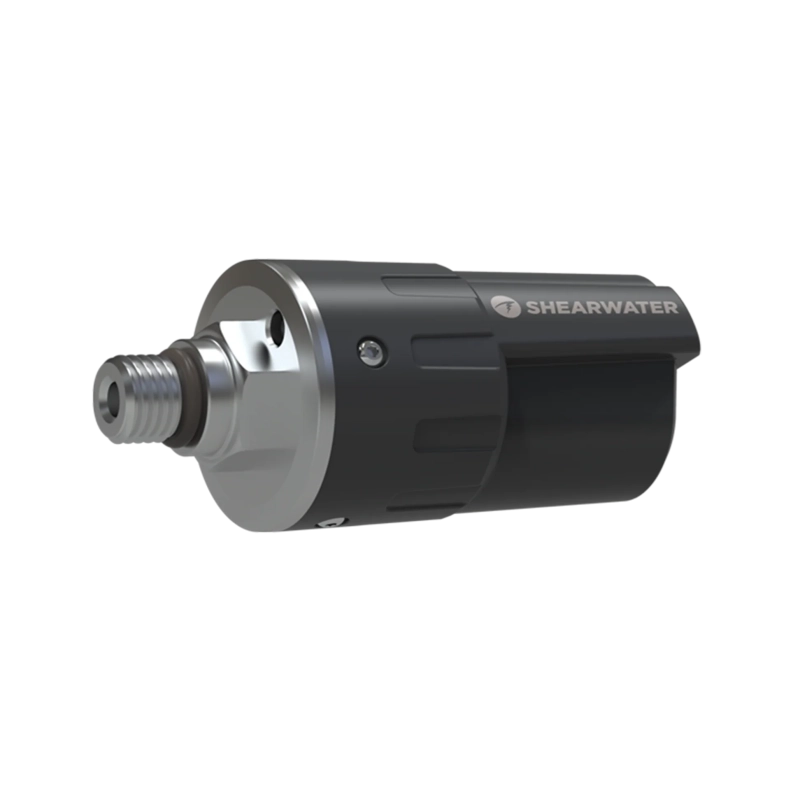

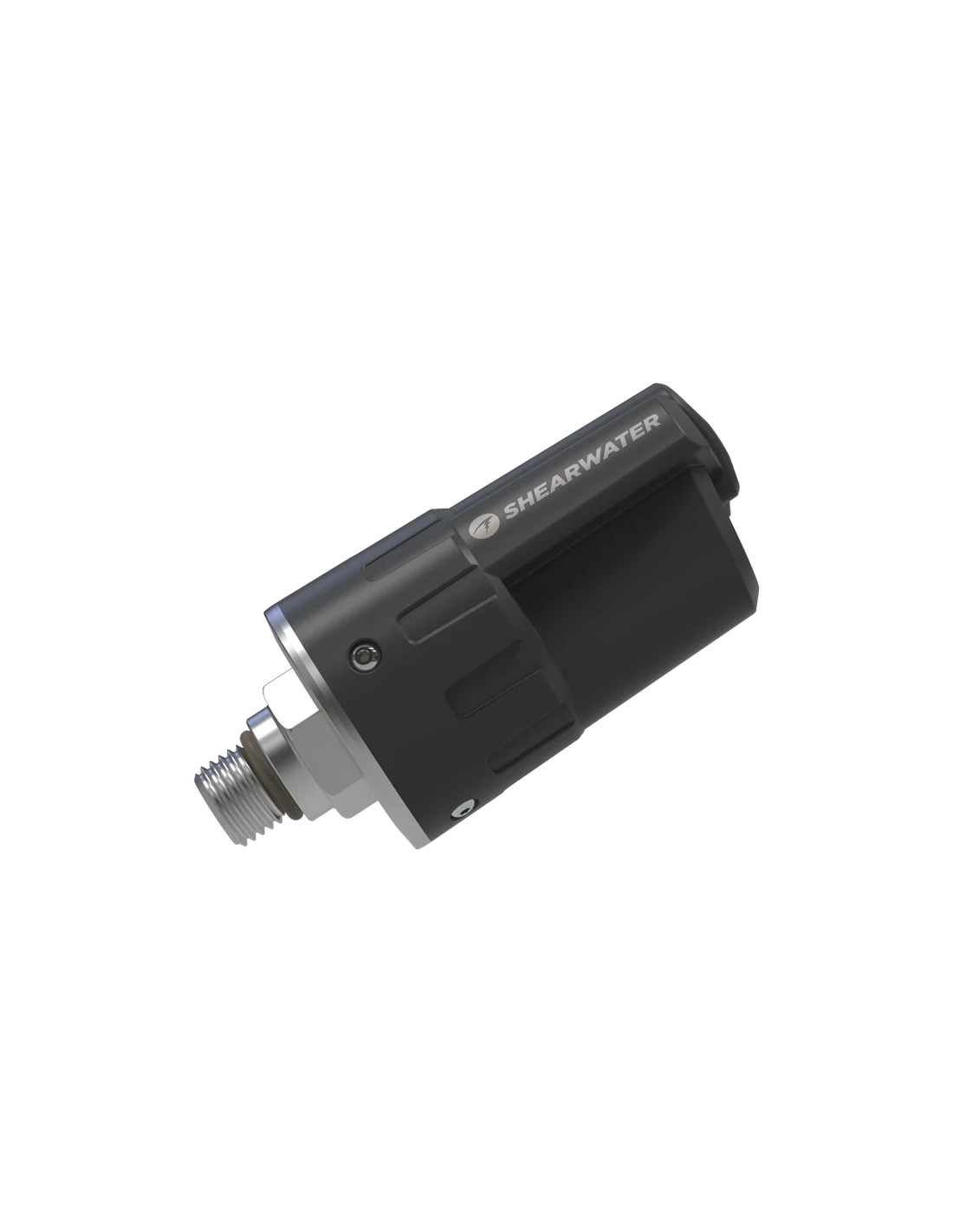

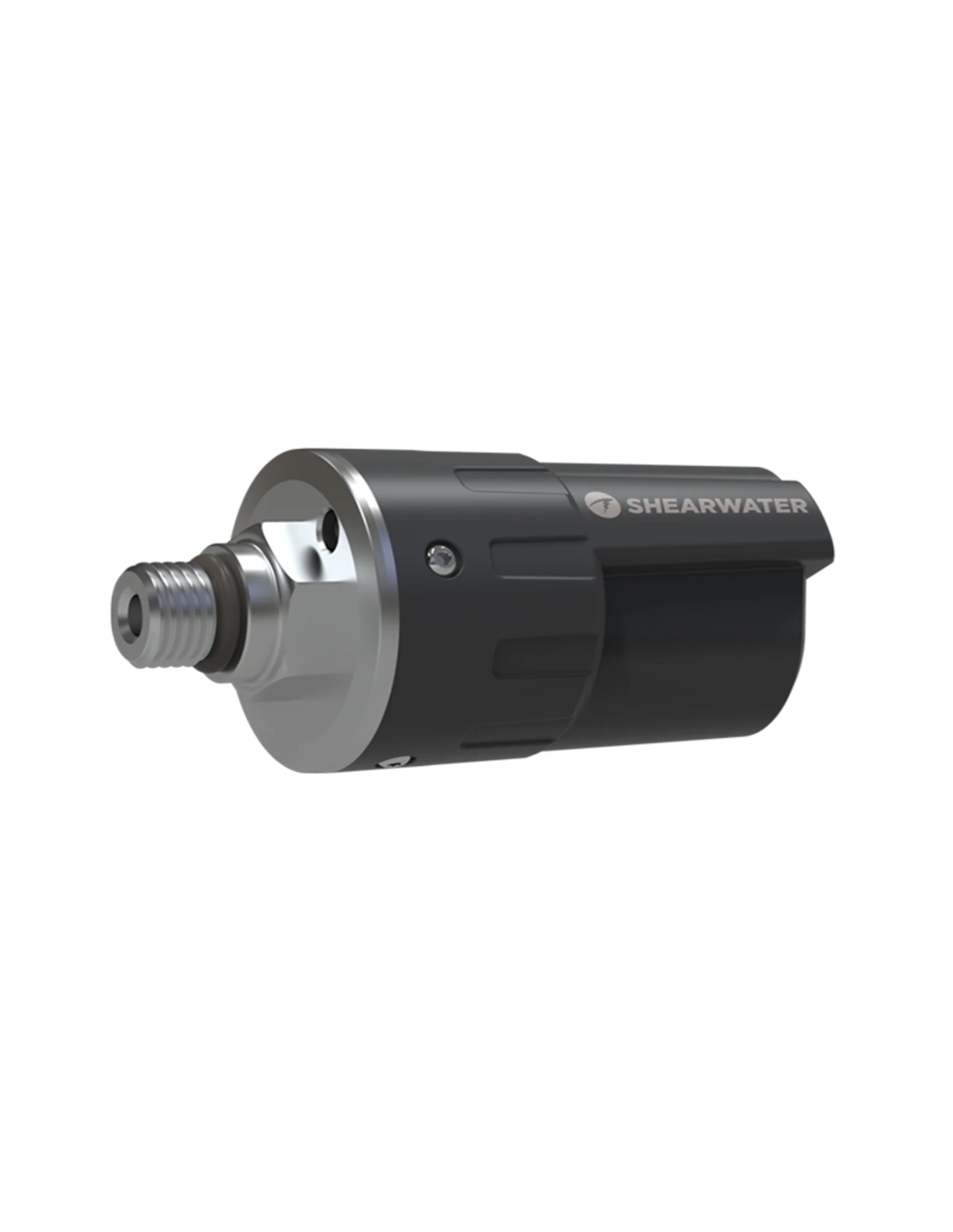

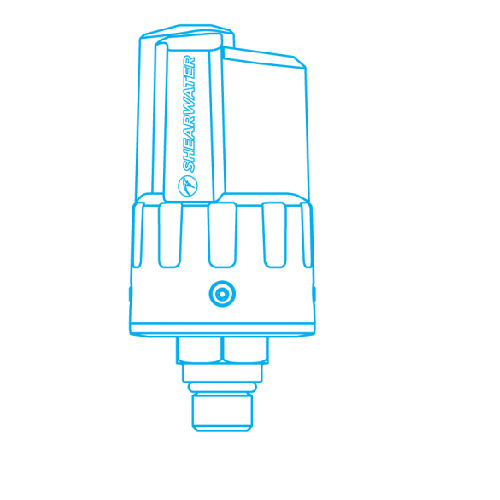

Shearwater Transmitter Swift

Full Features

• Advanced collision avoidance system ensures reliability using multiple transmitters

• Randomized transmit interval allows for reliable simultaneous use of multiple Swift transmitters

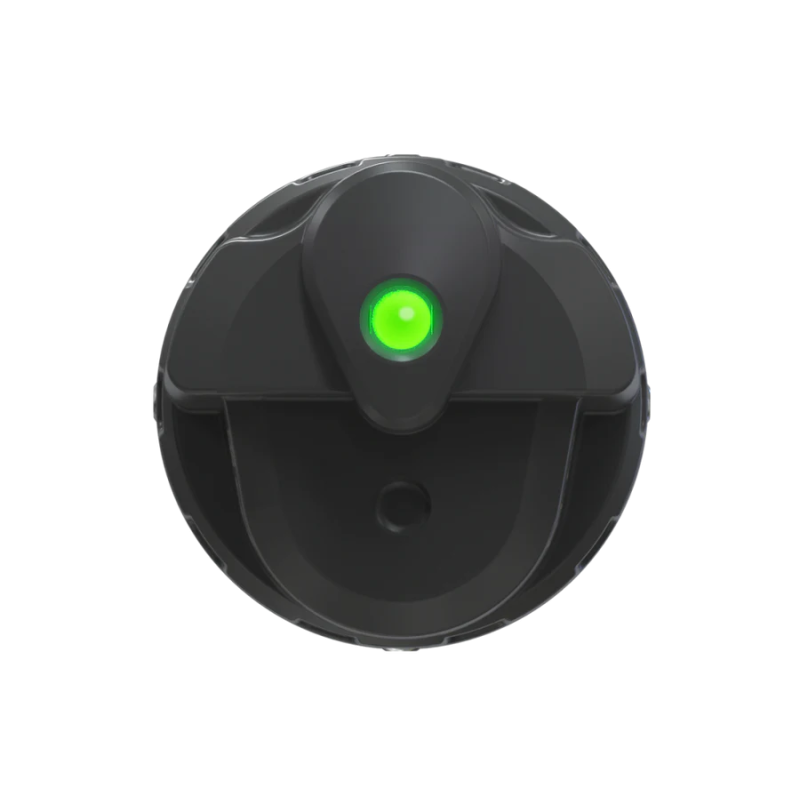

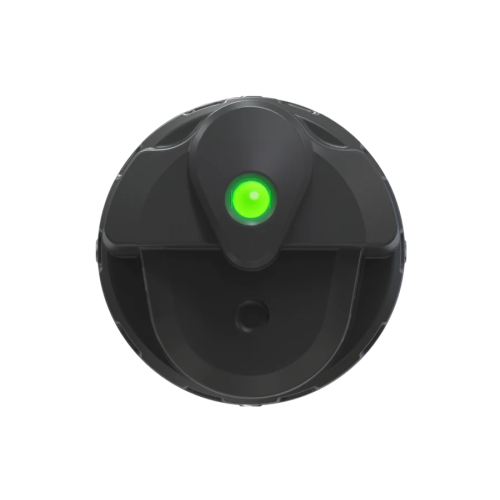

• LED status indicator

• Easy ‘no tools’ installation and removal on divers first stage

• Compatible with all existing air integrated Shearwater dive computers and many other computers already on the market

Tecnical Specifications

• Depth limit: 200msw

• Operating temperature range +4°C to +34°C

• Short-term (hours) temperature range: -10°C to +50°C

• Pressure port: 7/16" -20UNF

• Rated air pressure: 300 bar / 4350 psi

• Pressure reporting resolution: 0.14 bar / 2 psi

• HP port proof pressure: 450 bar / 6525 psi

• Accuracy: 5% full scale

• Zero offset: <3.5 bar / 50 psi

• Activation pressure: 7 bar / 100 psi

• De-activation pressure: 3.5 bar / 50 psi

• Cover screws: 1.5mm hex

• Body o-ring: 24x1.5mm

• HP port o-ring: AS568-904 75A Viton

Dimensions

• Size 76mm (L) x 34mm (D)

• Weight 135g

Battery:

• Battery type: CR2 3V Lithium (User replaceable)

• Ships with and recommended battery type: Panasonic CR2 Industrial
  Lithium

• Battery Capacity (approx): 2.55 Wh

• Battery life: Up to 300 dive hours (HP pressure present) 5 year storage time
